China Masonry Drilling Taper Drill Button Bit

Place of Origin: Henan,China (Mainland)
Machine Type: Drilling Machine
Type: Drill Bit
Name: Small hole rock drilling tools button bits
Thread: R22,R25,R28,R32,R38
Face: Flat, drop center
Skirt: Regular, retrac
Tip: Tungsten carbide
Payment: T/T
Delivery: By air or by sea
Delivery time: Depend on stock
Customization: Available

inquiry

skype basketAdd to Basket  Edit

Share |

Product Description

Payment & Shipping Terms Supply Capacity
Unit Price:10.0 USDProduction Capacity:10000 pieces/month
Payment Terms:WU, T/TPacking:Wooden box or carton
Min. Order:1 Piece/PiecesDelivery Date:Depend on the stock
Means of Transport:Ocean, Air

China Masonry Drilling drill Button bit R32

Button bit    Drill Bit



1.With carbide buttons hot pressed on bits bodies, Tapered Button Bits have a very good drilling performance and long life time. Different diameters and taper degrees are available to suit different applications in mining, quarrying etc. We can supply long skirt and short skirt Tapered Button Bits.



2.Comparing with tapered chisel bits and tapered cross bits, button bits has higher technology, much

    longer primary drilling time and higher drilling efficiency, so that the button bit is popular among the

    users





3.  Button bit with 6 tips, 7 tips, 8 tips etc, we do them according to customers' requirements. We can manufacture the following types according to clients' need: taper 6, 7, 11, 12. .





Specification of mining chisel drilling bit:

Description

Diameter

Length

Weight

Taper Angle

a=4°, 6°, 7°, 11°, 12°

Socket inside Diameter.

d=15, 19, 22, 25

mm

mm

kg

20

65

0.15

22

65

0.15

25

69

0.15

28

60

0.2

30

55 88

0.2

32

55 64 71 80

0.25

34

71 80

0.29

36

74

0.35

38

74

0.4

40

74

0.42

42

74

0.42

45

74

0.42




Cross Type Bit, 7 ° , 11° , 12°


Length (mm)

Chisel Size (H x W) mm

Weight (Kg)

1

30

12x12x8

0.29

2

32

12x12x8

0.31

3

33

12x12x8

0.33

4

34

12x12x8

0.34

5

35

12x12x8

0.36

6

36

13x12x8

0.37

7

38

14x12x8

0.43

8

40

15x12x8

0.47

9

41

15x12x8

0.49

10

42

15x12x8

0.51

11

43

15x12x8

0.53

12

45

17x14x8

0.58

13

48

17x14x8

0.67

14

50

19x14x8

0.72

15

55

20x16x10

0.92

16

60

20x16x10

1.19



Button Bit type :

A. Taper button bit

33mm, 38mm, 44mm.

B. Thread Button Bit

R25--38mm, R25--41mm, R28--38mm, R28--41mm

R32; R32--45mm, R32--76mm, R32--89mm, R32--102mm

T38; T38--64mm, T38--76mm, T38--89mm, T38mm--102mm

T45; T45--89mm, T45--102mm

T51; T51--89mm, T51--115mm,  T51--127mm

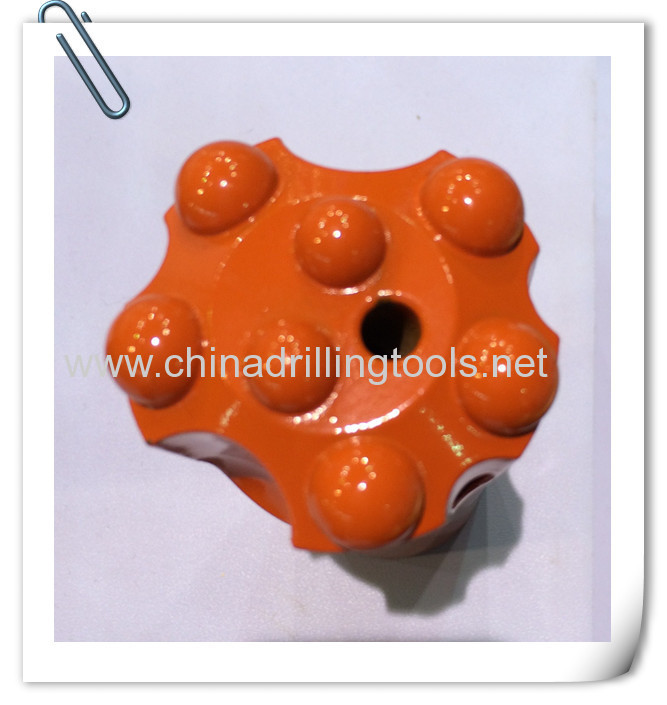

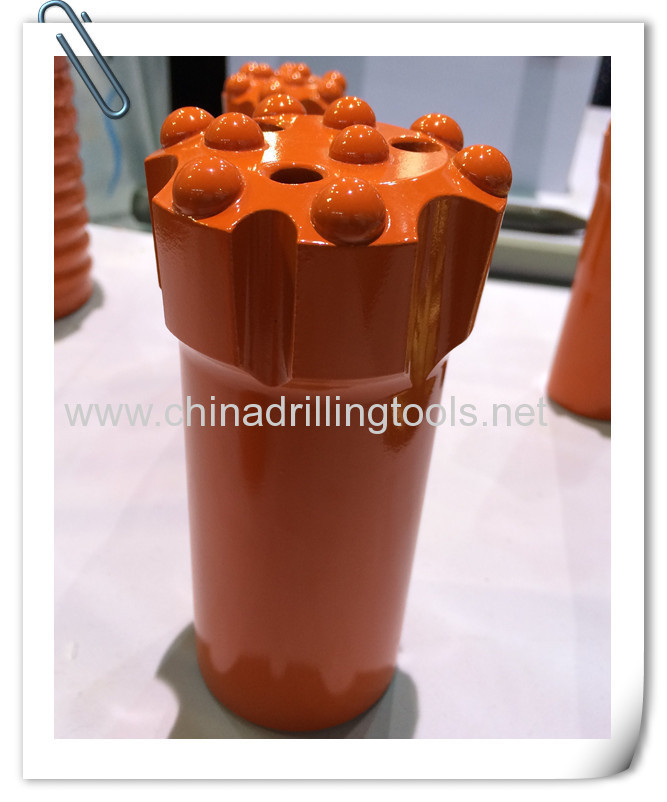

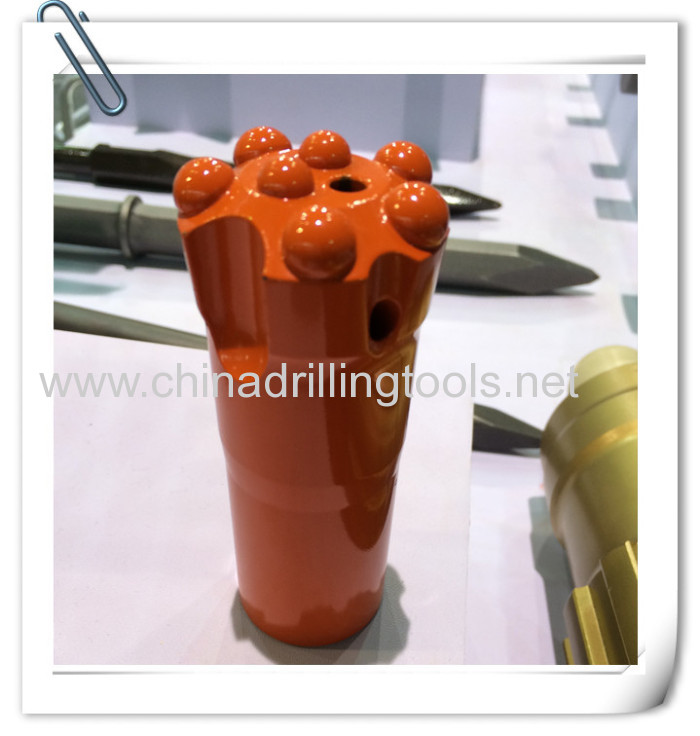

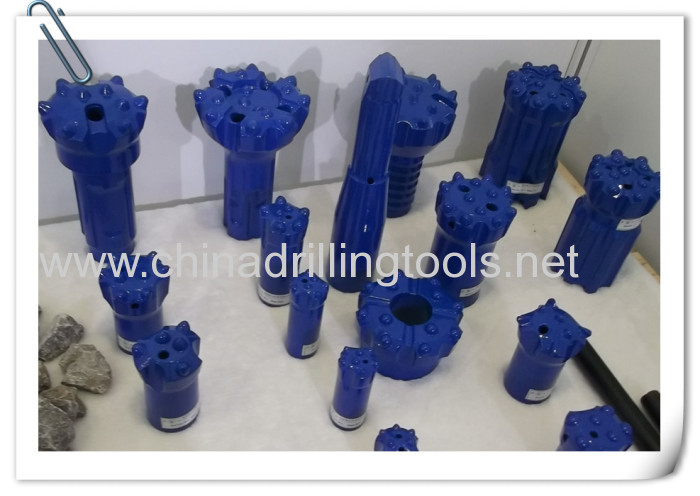

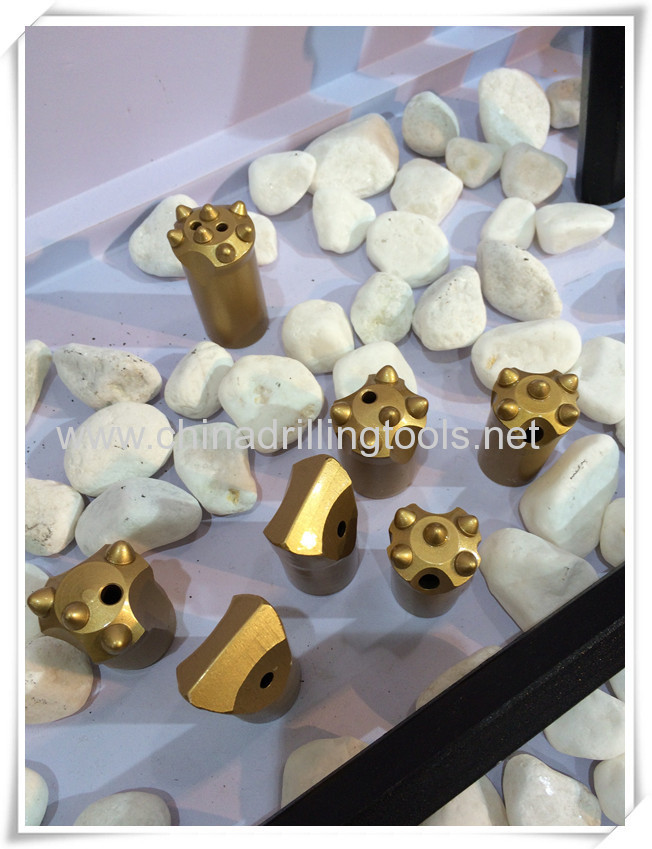

Sample pic:



The Other Information you may be concerned about the order :

1). Payment Term: T/T, L/C , D/P Western Union or others

2). Delivery Time: Within 5days after receipt of your confirmation, if we have stocks.

   And it would take 10~20days according Production Schedule

3). Package: Standard Exporting Package, Wooden Case or as your choice.

4). Shippment: Less than 45kgs, we suggest to ship by International Courier, like DHL , UPS , TNT , FedEx  and so on . Door to door service. More than 45kgs, we will ship by air , fast and safe .Up 100kgs, the goods will be shipped by Sea.


About products we can provide:


1. Integral drill steels (Integral Drill Rods)
Shank H22x108mm, H19x108mm, standard hex. Bit diameters include 20-42mm.
2. Tapered drilling tools (Tapered Drill Steel)
Including:
Shank H22x 108mm, (6, 7, 11, 12 degree taper) taper rods in most lengths.
A comprehensive range of button bits, cross bits and chisel bits with (6, 7, 11, 12 degree taper).
Bit diameter: 28mm-57mm.
3. Extension drilling tools
Button bit, face design: Flat face, drop centre, Normal and Retrac body.
Tungsten carbide (Buttons): Spherical, ballistic and Conical. (Threaded R32, R38, T38, T45, T51, bit diameter: 45mm-127mm);
Couplings sleeves- manufactured with a middle stop to prevent walking along the thread. Include couplings sleeve (threaded R22, R25, R28, R32, R38, T38, T45, T51)
Shank adaptors - carburized and manufactured with tight tolerances and controlled straightness.
4. Down the hole hammers and DTH bits (Down The Hole Drilling)
Offer IR hammer, DHD3.5, DHD340a, DHD360, DHD380, and low pressure hammers CIR65a, CIR90, CIR110, CIR150, CIR170 etc. DTH bits: 60mm-254mm bits with flat face, concave design fit for the atlas copco and ingersoll-rand model etc.
5. Excavate coal cutter bits
Include all kinds of round cutter bit and flat cutter bits for excavate coal machine as the replacements of kennametal. Such as U76, U82, U84, U85, U92, U94, U95, U118 and coal bolting bit and coal bolting rod.
6. All kinds of casing bits for shield machine and construction tools.
7. Round road planning bit for road milling machine and machine.
Shank diameter=19.4mm, 25mm, 30mm, 33mm, 38mm, etc.
8. Blast furnace tap hole drill tools. (Rod, Cross bits, button bits and X-type bits etc).
